Full contact stainless steel double-deck internal floating roof

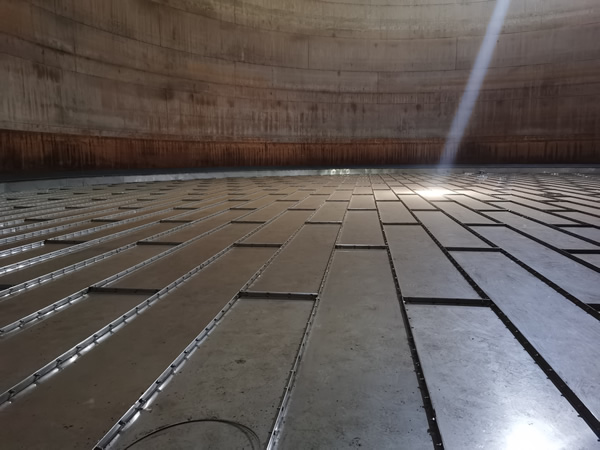

The full contact stainless steel double-deck internal floating roof adopt beamless structure design, where the module units is arranged and connected in staggered form, and the honeycomb core is set in the module unit; the module units are welded by full welding process and undergo gas tightness test to ensure that the module unit is free from any leakage points. The upper and lower surfaces of the floating roof are flat, the lower surface of the floating deck is in full contact with the oil, and the assembly seams on the upper surface is sealed. There will be no space for oil gas to volatilize.

The module units of full contact stainless steel double-deck internal floating roof using fully automated welding technology. With automatic argon arc welding for the standing edges and automatic laser welding for the floating roof cover plate. The box of unit module is completely sealed, eliminating the possibility of media entering inside through the gap in the cover plate of internal floating roof.

SHM-The full contact stainless steel double deck IFR

(1) Safety

● Fully liquid-contact design eliminates 99.5% of oil and gas space

● Honeycomb inner core structure, flat compression strength is more than 7 times the specified

● Fully welded, fully enclosed structure, no risk of leakage

● The modules are arranged in a staggered pattern, the whole IFR has high strength and strong impact resistance.

● Made of stainless steel, fire-resistant and corrosion-resistant

● Modular assembly, no other operations required, short construction period, safe and convenient

(2) Ecofriendly

● Reduce gas and oil and VOCS volatilization from the source by 99.5%

● Reduces VOCs emissions by 75% more than pontoon-type IFR

● Compared to beam IFR reduce VOCs emissions by 62%

● The service life can reach 20 years, and the material of IFR is recyclable and environmentally friendly.

(3) Energysaving

● Reduce oil and gas volatilization, reduce losses and save energy

● Controlling oil and gas volatilization no require the loss of other energy and reduces energy losses.

● Low operating costs, easy maintenance and long-term benefits.
